The performance parameters

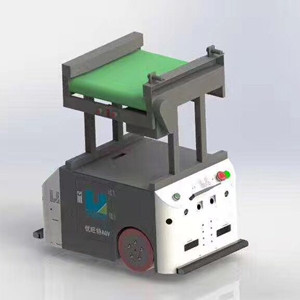

Pack-type AGV description
Product model
TL-BF-400SX-001
Overall dimensions
Standard L680mm*W450mm*H400mm (or customized)
The navigation type
Magnetic navigation
Drive form
Differential drive
Walk way
Forward, 90°/180°/360° rotation, bifurcation turn, timing stop, reversing operation and other multi-functional driving
Walking speed
0~45m/min (or customized)
The rated load
100KG (or customized)
Climbing ability
2 c or less
Turning radius
300mm or in situ 90°/180°/360° rotation
Stop accuracy
Plus or minus 10 mm
The navigation accuracy
Plus or minus 10 mm
Battery life
8-12H(or customized)
Charging way
Manual charging/automatic charging (optional)
The human-computer interaction
Easy operation / 4.3-inch touch screen (optional)
The police form
Sound and light alarm進(jìn)入翻譯頁(yè)面
